At Cutech, our penetration testing services help to detect fine surface cracks that are often invisible to the naked eye. Our PT test welding services are delivered by our certified NDT specialists and meet international standards for safety-critical sectors.
What is Penetrant Testing?
Overview of Penetration Testing in NDT
At Cutech, our non-destructive testing (NDT) penetration testing is used to identify surface-breaking flaws in non-porous materials.
This method is particularly valuable for locating cracks, porosity, and laps in welds, castings and other metal components.
How Liquid Penetrant Testing Works
liquid penetrant testing involves applying a visible or fluorescent dye to the clean, dry surface of a component.

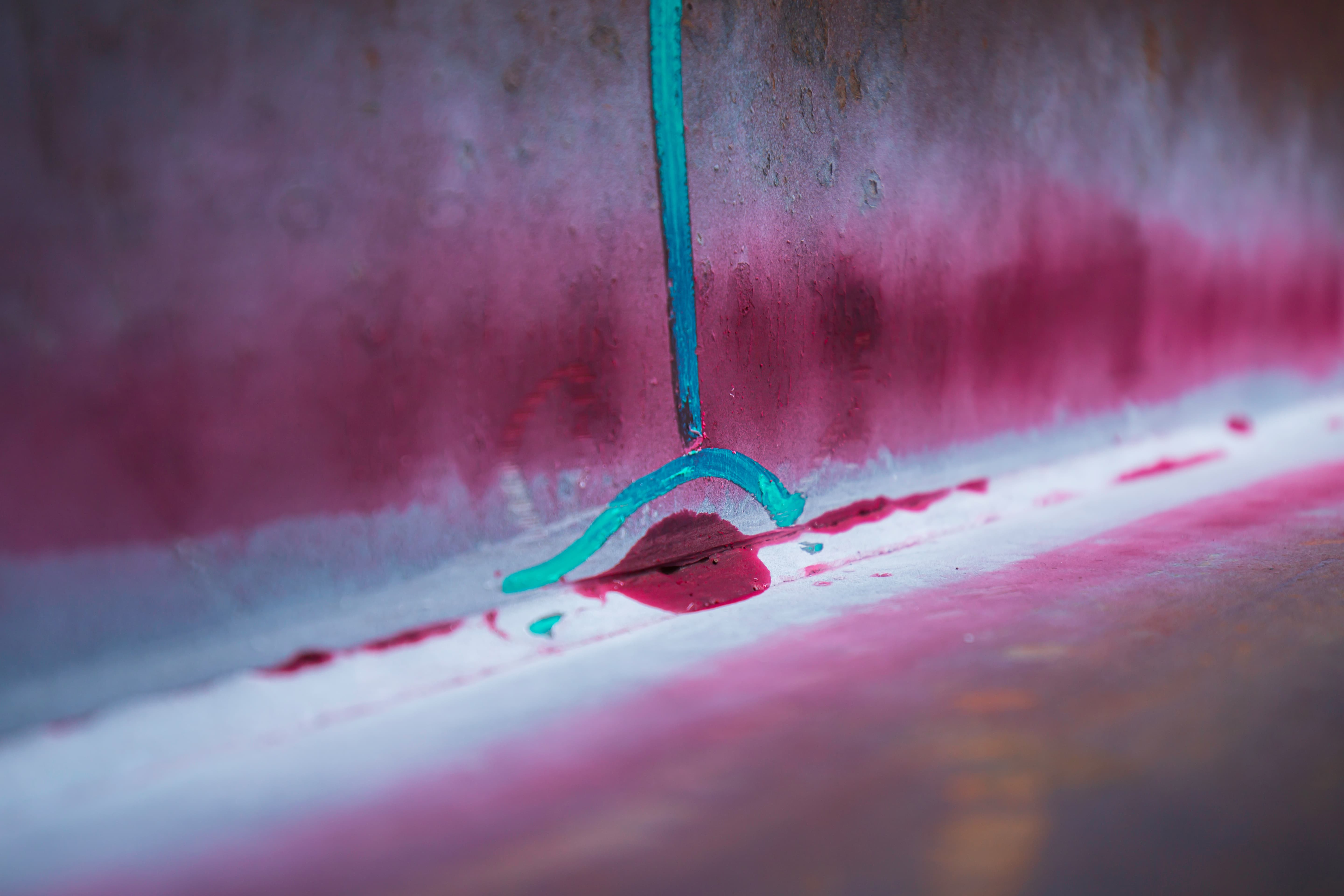

The dye penetrates any open surface defects through capillary action. After an appropriate dwell time, the excess dye is removed, and a developer is applied to draw out the penetrant. This reveals any flaws as visible indications.
Principles of Dye Penetration Test Methods
The dye penetration test method is based on the principle of capillary action. a liquid penetrant is drawn into any surface-breaking flaws, which are then made visible using contrast agents under standard, or UV Lighting.
Penetrant Materials Used in Penetration Testing
At Cutech, we use a range of qualified materials in our penetration testing processes, including:
- Visible red dyes for daylight inspections
- Fluorescent dye penetrant inspection systems for high sensitivity under UV light
- Solvents and emulsifiers suitable for different removal methods
Types of Penetrant Testing Methods
Visible Dye vs. Fluorescent Dye Penetrant Inspection
Both visible dye and fluorescent dye penetrant inspection techniques are used by our certified technicians depending on the inspection environment.
Visible dye penetrants are ideal for standard lighting, whereas fluorescent dyes offer superior visibility in dark or enclosed spaces.
Water Washable, Solvent Removable & Post-Emulsifiable Methods
At Cutech, we use three main removal techniques based on specific project needs:
- Water washable: for ease in shop environments
- Solvent removable: for fieldwork and portability
- Post-emulsifiable methods: for maximum sensitivity and control
Liquid Penetrant Inspection Standards & Applications
Our liquid penetrant inspection services comply with key international codes and standards:
- ASME Section V
- ASTM E165
- ISO 3452
PT Test Applications in Welding and Fabrication
Deep Penetration Test Welding for Structural Integrity
We use deep penetration test welding inspection to detect surface cracks and porosity that could lead to structural failure in bridges, buildings and offshore platforms.
PT Test Welding in Fabricated Components & Weld Seams

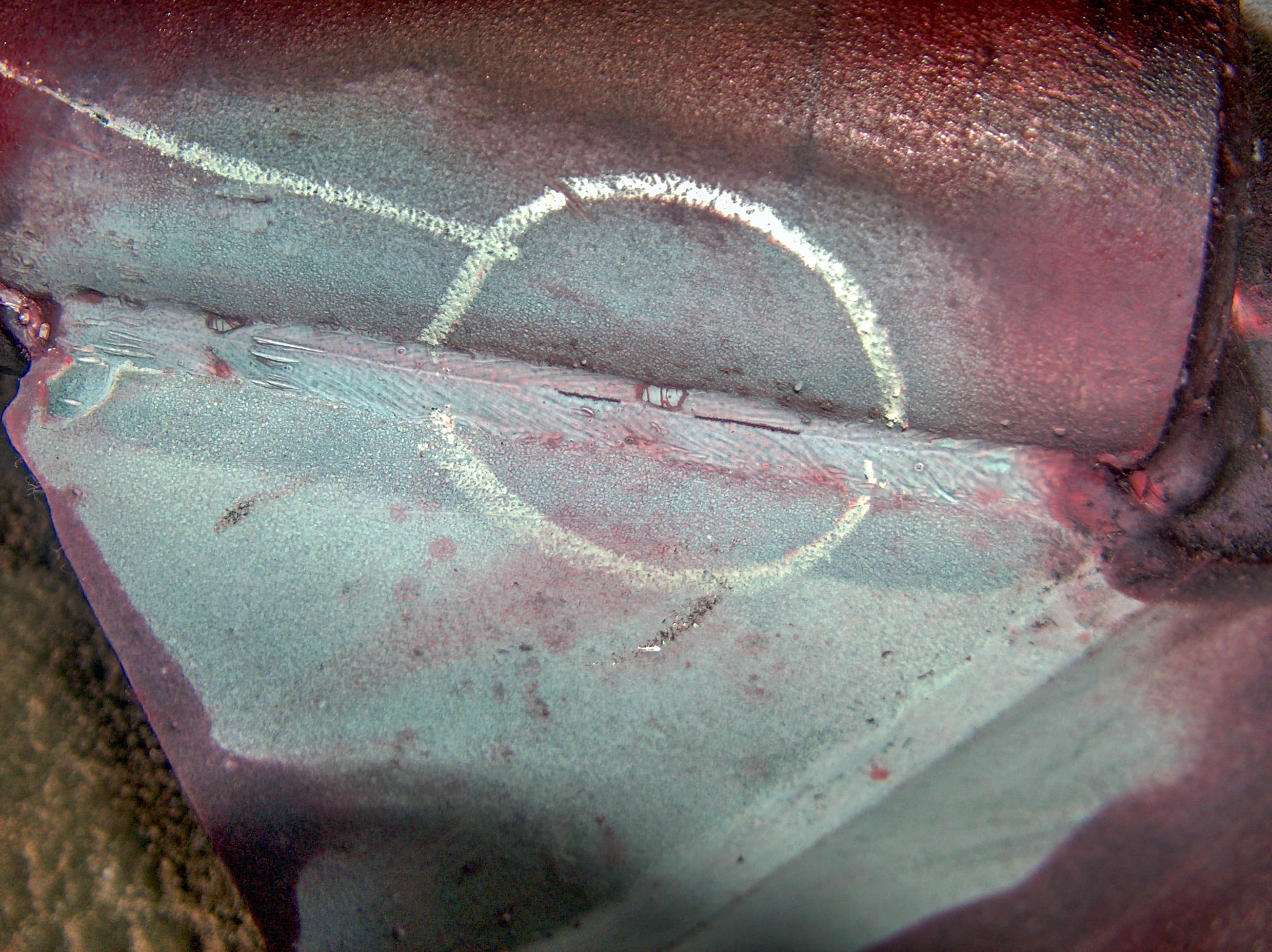

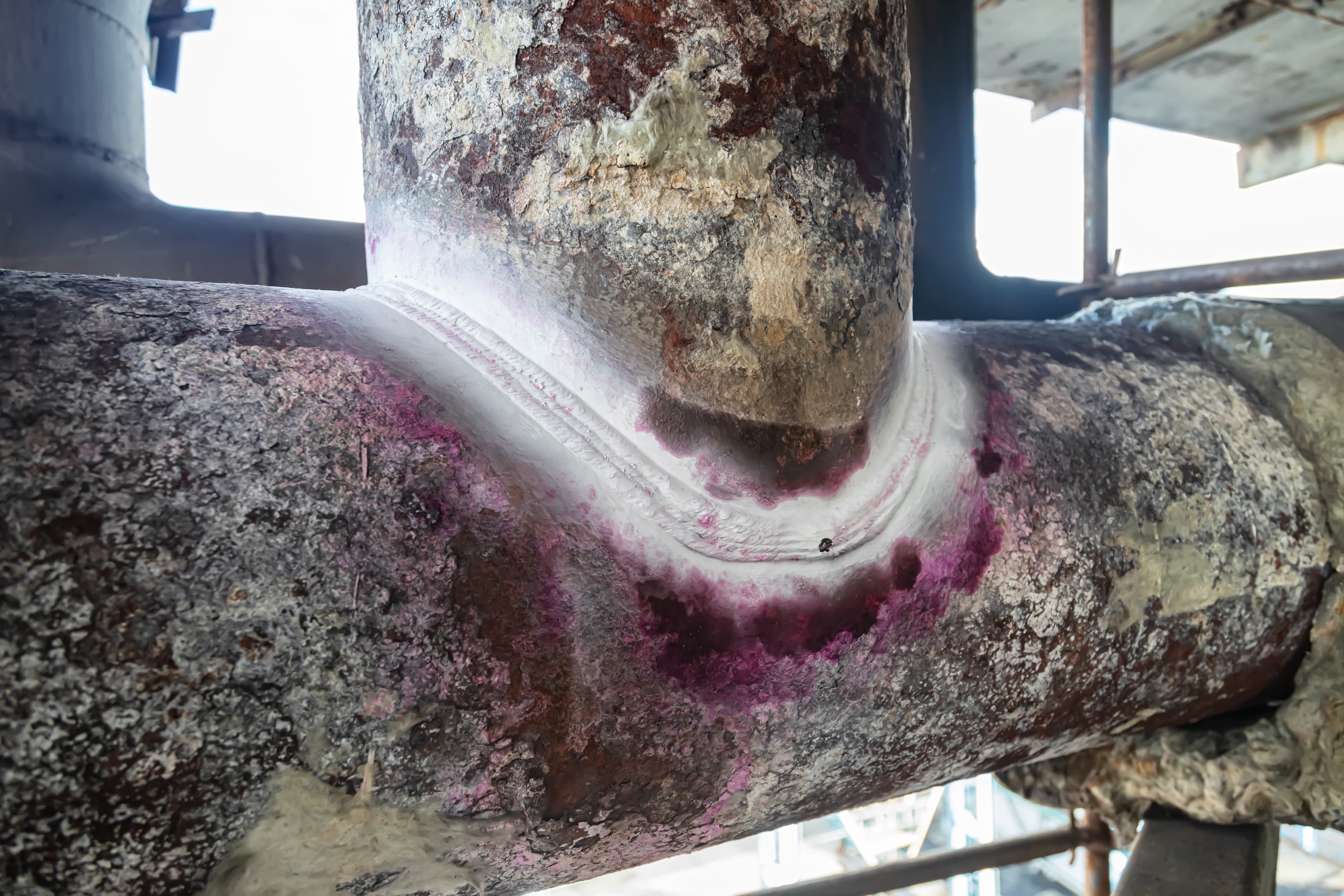

At Cutech, we regularly perform pt test welding to detect fatigue cracks, lack of fusion, and surface breaking defects on fabricated components and weld seams.
This method is suitable for both new fabrications and in-service structures where weld integrity is crucial.
Benefits of Dye Penetration Testing
Detect Surface Flaws Invisible to the Naked Eye
The dye penetration test method highlights cracks and porosity that are not visible on standard visual inspection. This method improves reliability and confidence in welds and castings.
Cost-Effective, Quick, and Non-Destructive
Our penetration testing offers quick turnaround and low setup requirements the simplicity of the test method makes it an affordable and efficient option in many routine inspection procedures.
High Sensitivity for Non-Porous Materials
Dye penetration testing is ideal for smooth, non-porous metals and ceramics, as even fine cracks can be detected with high accuracy using liquid penetrant testing. This helps prevent failures that could lead to severe safety or operational, or compliance issues.
Why Choose Our PT Inspection Services?
Qualified NDT Level II & III Technicians
At Cutech, all penetration testing work is carried out by certified Level II and III technicians. All technicians are qualified TO iso 9712, PCN and ASNT standards.
Compliance with ASME, ASTM E165, ISO Standards
Our inspections follow strict key industry codes such as ASME Section V, ASTM E165 and ISO 3452. We provide comprehensive and traceable documentation to support compliance requirements.
Onsite and In-House Testing Options
We offer both mobile and in-house penetrant testing services.
Our experienced technicians carry out inspections using portable kits on-site or in controlled conditions at our in-house facilities, depending on project requirements.
Why Choose Cutech for Radiographic Testing Services?
Certified RT Technicians and State-of-the-Art Equipment: At Cutech, our radiography NDT services are carried out by certified RT technicians, qualified to ISO 9712 and ASNT standards. We use state-of-the-art gamma ray and X-ray equipment to ensure reliable and accurate results across field and in-house inspections.
Digital Image Processing and Reporting: We offer digital radiography testing with fast turnaround and secure data storage. Our processed images can be reviewed, shared and archived with traceable reporting to enable confident decision-making, a reduction in downtime, and to support long-term asset records. Our streamlined approach makes radiographic testing more efficient for both high-volume inspections and complex defect analysis.
Compliance with Industry and Regulatory Requirements: Our RT procedures are aligned with radiographic testing standards, including ASME, ASTM, API and ISO. We maintain robust QA/QC frameworks to meet the requirements of regulated sectors such as oil and gas, marine, and power generation.
Penetrant Testing FAQs
What is penetration testing?
Penetration testing is a non-destructive testing method (NDT) used to reveal surface cracks and defects in non-porous materials by applying a visible or fluorescent dye.
What is the primary goal of penetration testing?
The primary goal of penetration testing is to detect and reveal open surface defects, including cracks, porosity or laps that could lead to structural issues or quality failures in critical components.
What are the pros and cons of liquid penetrant testing?
Liquid penetrant testing is a low-cost, easy to apply testing method that is sensitive to fine surface cracks, particularly on smooth and non-porous metals. However, it only detects surface-breaking defects and cannot be used on porous surfaces.
